RX-6022D 6KW Fiber Laser Cutting machine for Metal Cutting



Descripció

The advantages of a single laser cutting machine lie in its ease of operation and maintenance, along with the ability to achieve high-precision cuts. Additionally, it allows for automatic cutting, greatly enhancing production efficiency. Moreover, the cost of a single laser cutting machine is relatively low, making it an economical choice.

The RAYMAX 6022D 6KW single-table fiber laser cutting machine features a working table size of 6000*2200mm and a total power of 46,000W. Its main structure adopts a gantry design with a high-damping bed, ensuring excellent rigidity, high precision, and stable operation. The machine uses a dedicated welding platform with an overall level accuracy of ≤0.5mm, ensuring the precision of the bed’s welding. The overall welding accuracy is ≤5mm. The machine undergoes high-temperature annealing and secondary aging treatment, and is processed using large gantry milling machines. These design and manufacturing techniques ensure the machine has outstanding vibration resistance, high stiffness, and stability, fully meeting the stability requirements for high-speed motion.

Experience the ultimate in laser cutting technology with the RAYMAX 6022D 6KW fiber laser cutting machine, now available for only €7,000! If you have specific size and style requirements, feel free to contact us for further inquiries!



Paràmetres

Product Model	RX-3015	RX-4020	RX-6020	RX-6022
Àrea de treball	3000*1500 mm	4000*2000 mm	6000*2000mm	6000*2200mm
Potència làser	1000W、1500W、2000W、3000W、6000W
Positioning Accuracy	±0.03mm/m
Precisió de posicionament repetida	± 0,02 mm
Maximum Moving Speed	120 m/min
Maximum Cutting Speed	60 m/min
Drive System	High precision gear and rack + high precision linear guide rail
Voltatge	380VAC ± 10%/50Hz



Equipment

1. Fiber Laser Cutting Head and Automatic Tracking System
Equipped with a special fiber laser cutting head and a capacitive non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board, and avoid the material scrap caused by the change of focal length when the material is uneven.

2. Machine Tool System
The mobile gantry structure can maintain long-term stability and anti-vibration; the aluminum beam has been professionally manufactured by professional large-scale enterprises, secondary aging treatment, and precision machining by large gantry milling machines to ensure the rigidity and stability of the machine tool. Good performance. The equipment has high precision, good rigidity and stable operation.

3. Machine Base
After professional manufacturing by professional large enterprises, secondary aging treatment, large-scale gantry milling machine precision processing, these design and processing methods ensure that the machine tool has excellent shock resistance, high rigidity and stability.

4. Slag discharge system
The lower part of the bed is equipped with a partition collector, which can automatically remove waste materials and collect small parts in the production process.

5. Transmission System
It adopts high-quality rack and pinion transmission and bilateral linear guides; and adopts the original servo motor drive system imported from Japan. Its control has the characteristics of stronger stability and better compatibility to ensure the machine tool under high-speed motion.



Fiber Laser Generator

MAX Laser Generator
MFSC 10000W-12000W single module continuous fiber laser is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance free. It takes into account the high-speed cutting of thin plates and the bright surface cutting of medium and thick plates.

IPG Laser Generator
IPG fiber laser generator has reliable performance and low overall cost, which can help end users improve productivity while reducing costs. Full cutting capacity, metal plate cutting thickness up to 120mm.

RAYCUS Laser Generator
High electro-optical conversion efficiency
Customizable output fiber length
QD connector
Maintenance free operation
Wide modulation frequency range
Resistance to high inversion
High efficiency in thin plate cutting



Control System（BOCHU brand）



Cap de tall

Low Power-RAYTOOLS Brand

High Power-BOCHU Brand



Detalls

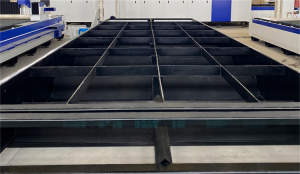

                    Stable and Solid Bed                                                                 Transmission System

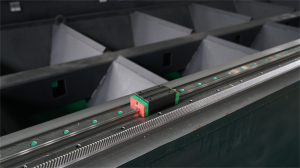

              Steel plate welding workbench                                 The combination of GERMAN ROR racks and
dgdggfffffffffff Twice tempering                                    TAIWAN HIWIN linear guides improves cutting speed
fdfddfddfdfffffffff fff                                            Optional linear guides brand: JAPAN SMG/ GERMAN HEREN

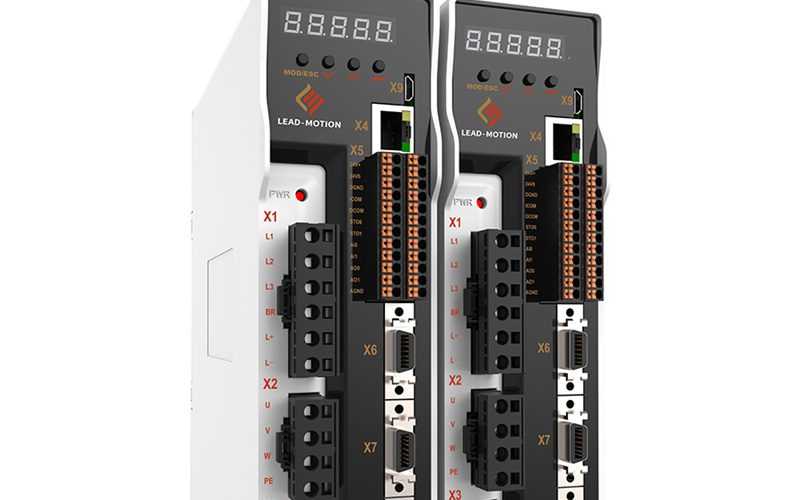

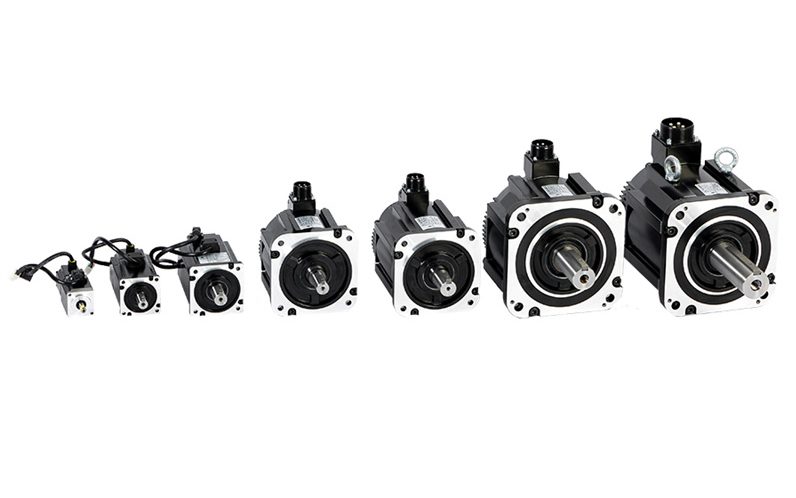

                         Servo Motor                                                                              Servo Drive
Adopt GERMAN Lead-motion or JAPAN FUJI servo motor        Adopt GERMAN Lead-motion or JAPAN FUJI
      with high performance and long service life.               servo drive to ensure the stability and accuracy of work.



                         Water Cooler                                                                              Reducer
  Intelligent control, precise temperature control,        France brand MOTOVARIO reducer. High tensile rigidity,
fffffff    various alarm protection function                           high precision, low noise, ip65 protection level,
ff to ensure the sustainable operation of 90 degrees.



Aplicació

The laser cutting machine can cut most metal materials with a cutting thickness of up to 50mm.
Widely used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, springs, circuit boards, electric kettles, medical micro Electronics, hardware, knife measuring tools and other industries.
